1000w Fiber Metal Laser Cutting Machine With WSX / Raytools Head

Name: 1000w Fiber Metal Laser Cutting Machine With WSX / Raytools Head
Brand: E-Cut
SKU: GD3015
Availability: InStock
ISBN: 27448629

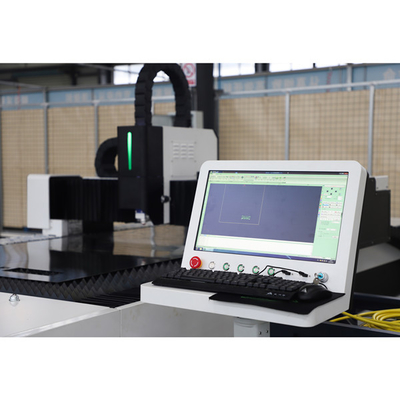

Large Image : 1000w Fiber Metal Laser Cutting Machine With WSX / Raytools Head

Product Details:

Place of Origin:	China
Brand Name:	E-Cut
Certification:	CE
Model Number:	GD3015

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Fiber laser machine no more than 1325 (13002500mm) will be packaged with wooden case and fix on the pallet.Fiber laser machine's size over 1530(15003000mm) can't be packaged with plywood case , it is better to load the machine in factory in case of the d
Delivery Time:	20Days
Payment Terms:	T/T
Supply Ability:	1000 Sets/month

Contact Now

Detailed Product Description

Power:	1000w 1500w 2000w 3000w	Model:	GD1530
Cutting Head:	WSX / Raytools	Reposition Accuracy:	±0.05mm
Cutting Width(X&Y):	13002500mm 15003000mm 2000*4000mm (can Be Customized)	Laser Source Brand:	RAYCUS/ MAX
Cutting Materials:	Metal, Steel Iron Aluminum Carbon Steel Plate Pipe Copper	Reducer:	Japanese Shimpo Reducer
High Light:	1000w Fiber Metal Laser Cutting Machine , Metal 1000w Fiber Laser Cutting Machine , 1000w Metal Fiber Laser Cutter

Europe Quality 1000w Fiber Metal Laser Cutting Machine Price Laser Cutter

China factory supply 1000w fiber laser cutting machine

Application:

1. Application fields: it can cut all kinds of metal plates and pipes, mainly used for rapid cutting of stainless steel, carbon steel manganese steel, galvanized sheet, various alloy plates, rare metals, and other materials.

2. Applicable industries: advertising decoration, kitchen appliances, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting, and other industries.
Specification

Items		Parameters
Model		GD Series
Laser Source		Raycus
Power		1000w 1500w 2000w 3000w~15000w(can be customized)
Linear Rial		PMI
Servo Motor		France Schneider Servo System
Reducer		Japanese Shimpo Reducer
Cutting Head		WSX / Raytools
Control System		Cypcut/ Weihong
Wave Lenth		1080nm
Cutting Width(X&Y)		13002500mm 15003000mm 2000*4000mm (can be customized)
Laser Media		Fiber Laser
Voltage Requirements		220v or 380v/50Hz~60Hz
Min. Route Width		0.1mm
Reposition Accuracy		±0.05mm
Aiming Positioning		Red Dot
Pipe Material Length		0~6000mm
Pipe Material Diameter		10~300mm(Optional)
PS. All the working areas and specifications can be customized according to your requests
