Desktop Mini Cnc Router Machine 4060 Engraving 800W

China Hefei Huiwo Digital Control Equipment Co., Ltd. certification
China Hefei Huiwo Digital Control Equipment Co., Ltd. certification
I'm Online Chat Now

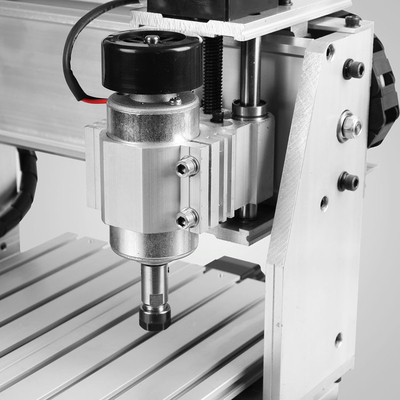

Desktop Mini Cnc Router Machine 4060 Engraving 800W

Desktop Mini Cnc Router Machine 4060 Engraving 800W
Desktop Mini Cnc Router Machine 4060 Engraving 800W
video play

Large Image :  Desktop Mini Cnc Router Machine 4060 Engraving 800W

Product Details:
Place of Origin: China
Brand Name: E-Cut
Certification: CE
Model Number: CNC3040
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: negotiable
Packaging Details: Double wooden package
Payment Terms: T/T
Supply Ability: 5000 Sets/month
Detailed Product Description
Model: CNC4060 Reset Positioning Accuracy: 0.03MM
XYZ Effective Stroke: 400*600*75MM Power: 800W
Voltage:: 220V/110V Spindle Motor Speed: 24000rpm
Precision: 0.03MM Stepper Motor: 57series Stepper Motor
High Light:

Desktop Mini Cnc Engraving Machine

,

800W Mini Cnc Engraving Machine

,

Engraving Mini ​CNC Router

Cnc Router 4060 Mini Cnc Small Desktop Engraving Machine

Product Description
Parameters
Model
CNC3020
CNC3040
CNC4060
Reset positioning accuracy
0.05MM
0.05MM
0.03MM
Precision
0.05MM
0.05MM
0.03MM
Voltage
220V/110V
220V/110V
220V/110V
Power
300W
300W
800W
Spindle motor speed
3000-12000rpm
3000-12000rpm
24000rpm
XYZ effective stroke
200*300*55MM
300*400*55MM
400*600*75MM
Transfer method
T12*2 Screw
605screw rod
Control System
MACH3
MACH3
Stepper motor
57series stepper motor
57series stepper motor
Frame material
Aluminum structure,12MM aluminum plate
Aluminum structure,12MM aluminum plate
Machine dimensions
56*45.5*43cm
66*53.5*43cm
91*69*52cm
package size
54*43*43.5cm
65*52*44.5cm
90*70*52.5cm
Machinable materials
PVC/Wood,Plastic,Jade(customized)etc,;
PVC/Wood,Plastic,Jade(customized)etc,;
Weight
26Kg
31Kg
62Kg



The main feature of the desktop-cnc-router is the small and simple structure under the special spindle design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metals like aluminum and copper.

Desktop Mini Cnc Router Machine 4060 Engraving 800W 0
Detailed Images
Desktop Mini Cnc Router Machine 4060 Engraving 800W 1
Desktop Mini Cnc Router Machine 4060 Engraving 800W 2
Desktop Mini Cnc Router Machine 4060 Engraving 800W 3
Desktop Mini Cnc Router Machine 4060 Engraving 800W 4



With four-axis(rotary axis) and tailstock
Simple operation and installation.
More steady and strong equipped with aluminum alloy frame materials.
Can be controlled only by a desktop computer, not suitable for a laptop
Mach 3 software is simple and intelligent
Can control the engraving more precise
The emergency stop button enhances security
Large 3D engraving in softwood, MDF board, native wood, PVC, and Acrylic.
The stepping motor knob is useful for small positioning adjustment, with a steady and strong support structure.
Cover plates reduce pollution for the screws and shafts.
Thick 15mm aluminum 6063 plates, stronger.
The reinforced and thickened machine body makes transportation absolutely to be a safer and longer lifetime.
The chrome shafts are not easy to deform, suitable for long time use.
Flexible coupling can be used for high torque transmission.
High Precision Stepping motor makes engraving more precise.
The NEW 1.5KW water-cooled VFD spindle is available to operate for a long time, which can reinforce the processing ability of the
machine and can be used to process aluminum alloy and hardwood.
his item already be equipped NEW 1605 ball screws. Anti-black flash, high precision, long life circle.


Samples
Desktop Mini Cnc Router Machine 4060 Engraving 800W 5
