Handheld Laser Welding Machine 500 Watt 1KW 1500W For Metal Hand Held Gun

Name: Handheld Laser Welding Machine 500 Watt 1KW 1500W For Metal Hand Held Gun
Brand: E-CUT
SKU: GK-2000
Price: 4888 USD
Availability: InStock
ISBN: 26735932

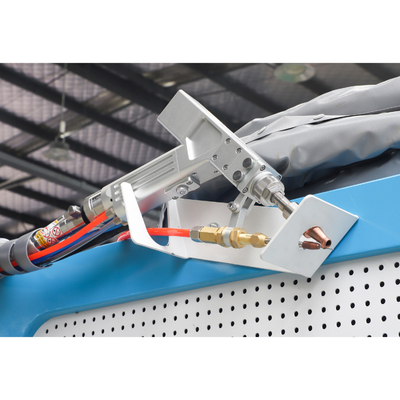

Large Image : Handheld Laser Welding Machine 500 Watt 1KW 1500W For Metal Hand Held Gun

Product Details:

Place of Origin:	China
Brand Name:	E-CUT
Certification:	CE
Model Number:	GK-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$4888-US$7000
Packaging Details:	Standard export wooden box
Delivery Time:	7-10Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000 Sets/month

Contact Now

Detailed Product Description

Usage:	Welding	Power:	1000W 1500W 2000W
Warranty Of Core Components:	3 Years	Weight (KG):	230
Laser Source Brand:	RAYCUS	Guiderail Brand:	PMI
Material:	Metal Aluminium	Color:	Blue
Air Humidity:	10-90%	Cooling Water Temperature:	5-45℃
Cooling Method:	Water Cooling	Output Fiber Length:	5/10/15m (Optional)
Electricity Demand:	220v	Work Patterns:	Continuous
Laser Frequency:	50Hz-5KHz	Machine Size:	1.2x1.5x1.1 Meters
High Light:	Handheld Laser Welding Machine 500 Watt , Handheld Laser Welding Machine 1KW , 1500 Watt Handheld Laser Welder

Handheld Laser Welding Machine 500watt 1KW 1500W Fiber Handy Laser Welder For Metal Hand Held Gun

PRODUCT SPECIFICATIONS

No	Item	parmeter
1	Model type	GK-2000
2	Laser power	1500,2000, 3000w
3	Laser wavelength	1070nm
4	Fiber core diameter	50μm
5	Work patterns	Continuous
6	Power required	AC220V / 380V
7	Output fiber length	5/10/15m (Optional)
8	Cooling method	Water Cooling
9	Cooling water temperature	5-45℃
10	Laser Energy Stability	<2%
11	Humidity range of working environment	＜ 70% non-condensing
12	Welding Speed	0-120mm/s

Details Images

SIMILAR PRODUCTS

Sample

Advantage

* smooth and beautiful welds save time costs and improve efficiency

* small affected heat area

no blackening, no deformation, firm welding

* short time and high efficiency

easy to operate, simple training need

Product Overview
Laser welding machine is suitable for welding galvanized sheet, stainless steel, carbon steel, copper, aluminum, gold, silver, titanium, nickel, tin, and other metals and their alloys. The same precision welding between metals and dissimilar metals can be achieved. The welding seam is beautiful, the speed is fast, no consumables, no welding marks, no discoloration, and no grinding in the later stage. Various angle nozzles can be configured to meet the welding needs of different products.

FAQ

Q: Do you have CE documents and other customs clearance documents? A: Yes, we have Original. First we will show you, after

shipment we will give you CE/packaging Customs Clearance List/Commercial Invoice/Sales Contract.

Q: Payment terms?

A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash etc.

Q: I don't know how to use it after receiving it, or there is a problem during use, what should I do?

A: We can provide vedeo for Team Viewer/Whatsapp/Email/Phone/Skype until all your Problem is over. If you need, we can also

provide on-line support 24 hours.

Q: Not sure which one is right for me?

A : Tell us the following information 1) Metal material for welding: choose the most suitable model. 2) Laser welding metal

material thickness: the power of the laser generator. 3) Line of business: We sell many products and advise on this line of

business.

Q:How long is the delivery time?

A: 7 days for normal machines, 12-14 days for customized machines.
